1000L New HDPE IBC Tank - Fine Thread Butterfly Valve (PST/2002/N)

  • Front view

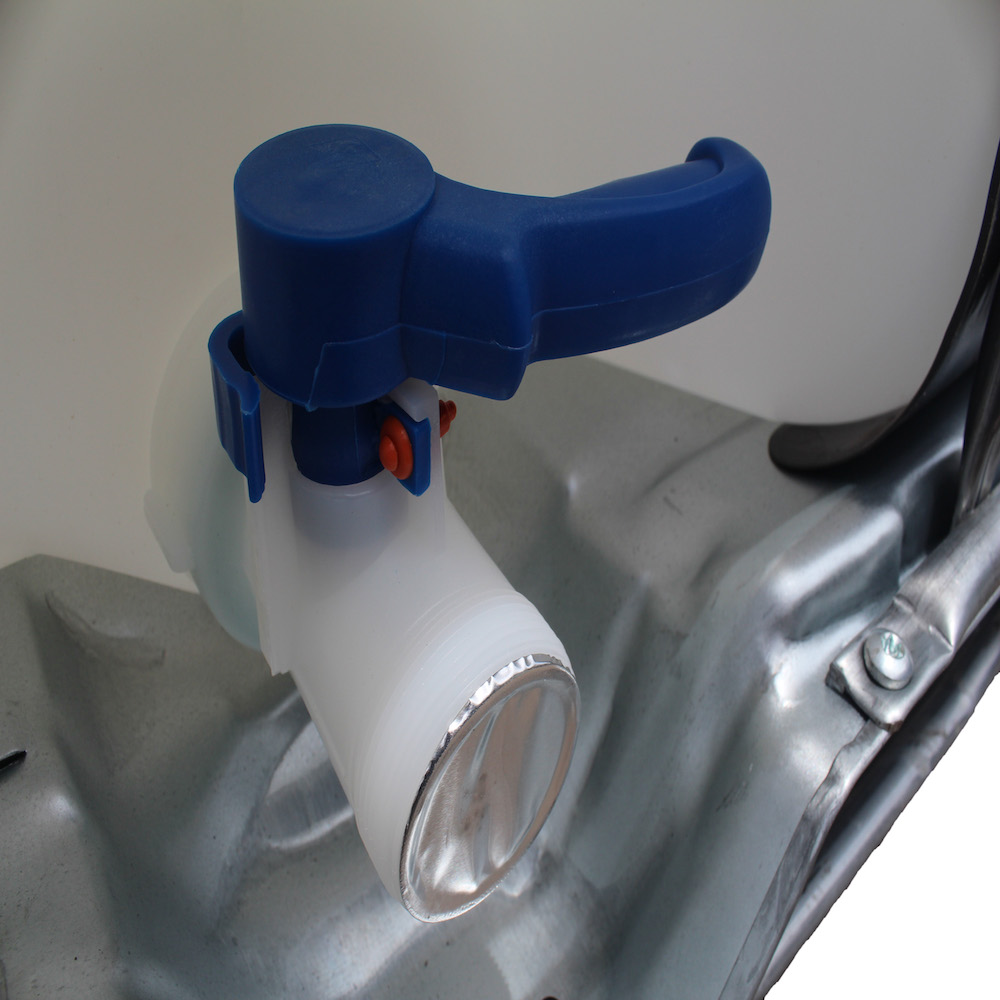

  • Valve

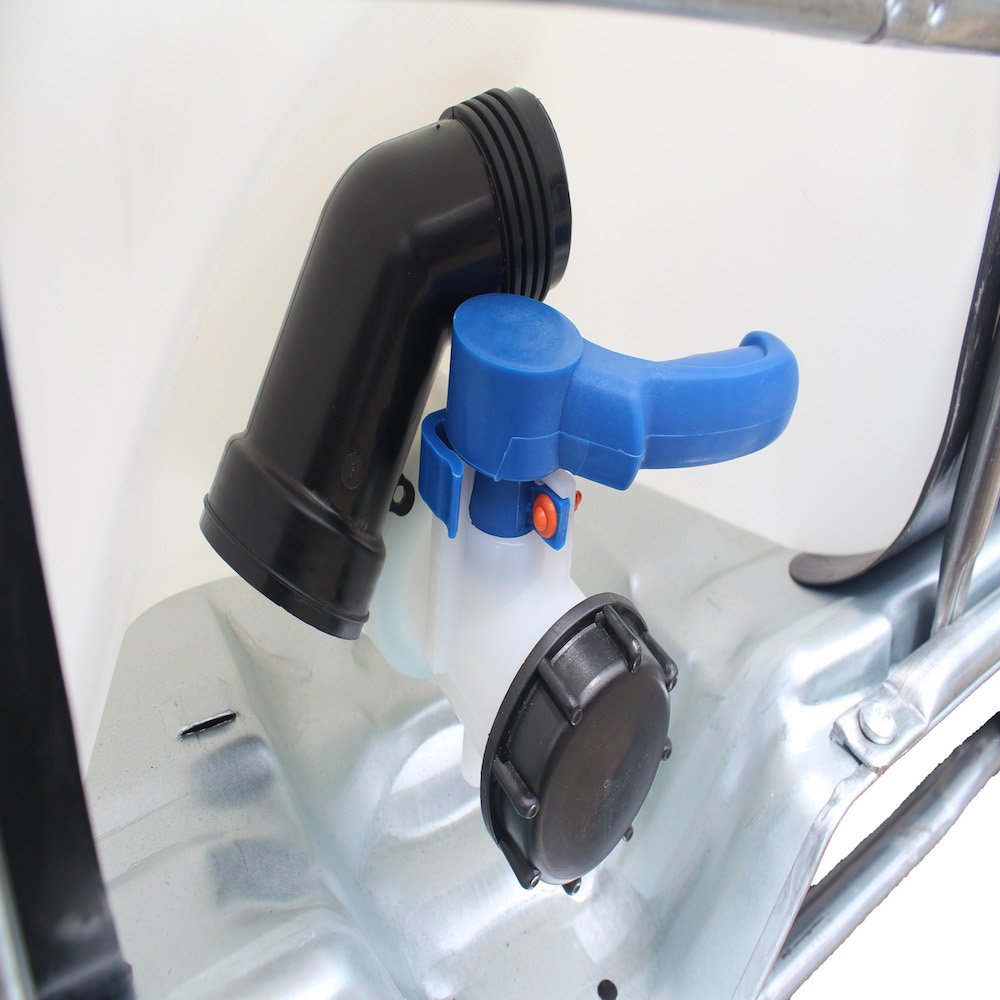

  • Fine thread

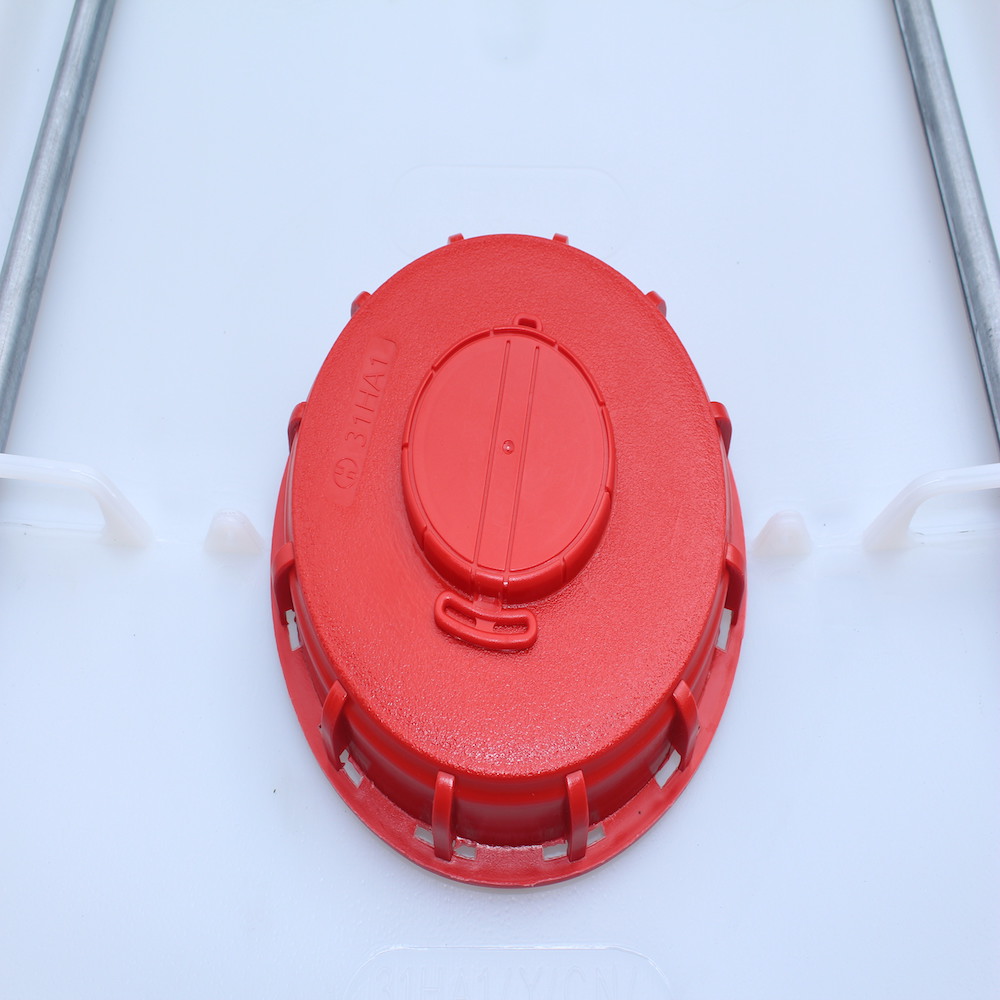

  • Top view

Product Code: PST/2002/N

UN-Marking: UN3H1/Y

IBC Cage
- Made of galvanising steel with bottom plate
- Tension bod on the top section is used to reduce shaking in transition
- 2 Steel label plates with 4 corner protectors
- Product labelling and instructions are included in the front of the tank

IBC Bottle
- Made of High Density Polyethylene (HDPE)
- The screw cap of a filling opening is in the middle of the top section

Discharge Opening
- Fine thread butterfly valve with DN50 black cap
- Gasket available in EPDM, Viton, PTFE depending on chemical compatibility

Filling opening
- DN150 with external thread
- Closed with screw cap, sealing-cap, gasket and G2-plug with vent or can be chosen according to demand
- Gasket available in EPDM, Viton, PTFE depending on chemical compatibility

Pallet
- Made of galvanising steel
- 4-way entry

CAPACITY : 1,000 LITRES

BRIUMFUL CAPACITY : 1,050 LITRES

LENGTH : 1,200 MM

WIDTH : 1,000 MM

HEIGHT WITH PALLET : 1,145 ± 5 MM

IBC BOTTLE DIMENSION : 1160 * 970 * 1020 (MM)

WALL THICKNESS : (MIN) ≥ 1.5 MM

FILLING OPENING : 150 MM

DISCHARGE OPENING : 50 MM

FORK OPENING : 100 MM

IBC BOTTLE WEIGHT : 15.5 KG

TOTAL WEIGHT (APPROX) : 58.0 KG
